Filling Unit

For two-way filling.
Fills the tray in both longitudinal and traverse direction.
The filling unit makes it possible to fill the tray optimally and without touching the products by hand.
The line can be left or right hand orientated.
Standard belt width is 650 mm and the maximal filling distance is 700 mm.
The synchronous conveyor included in the equipment is equipped with lockable wheels, which makes it easy to uncouple for cleaning. Connections with quick couplings. The synchronous conveyor transports the products on a grate.

Belt drive via a toothed belt, which makes the filling silent and gentle.
The open design enables easy daily cleaning and maintenance when needed.
The filling unit can be connected to the production line or it can operate independently.

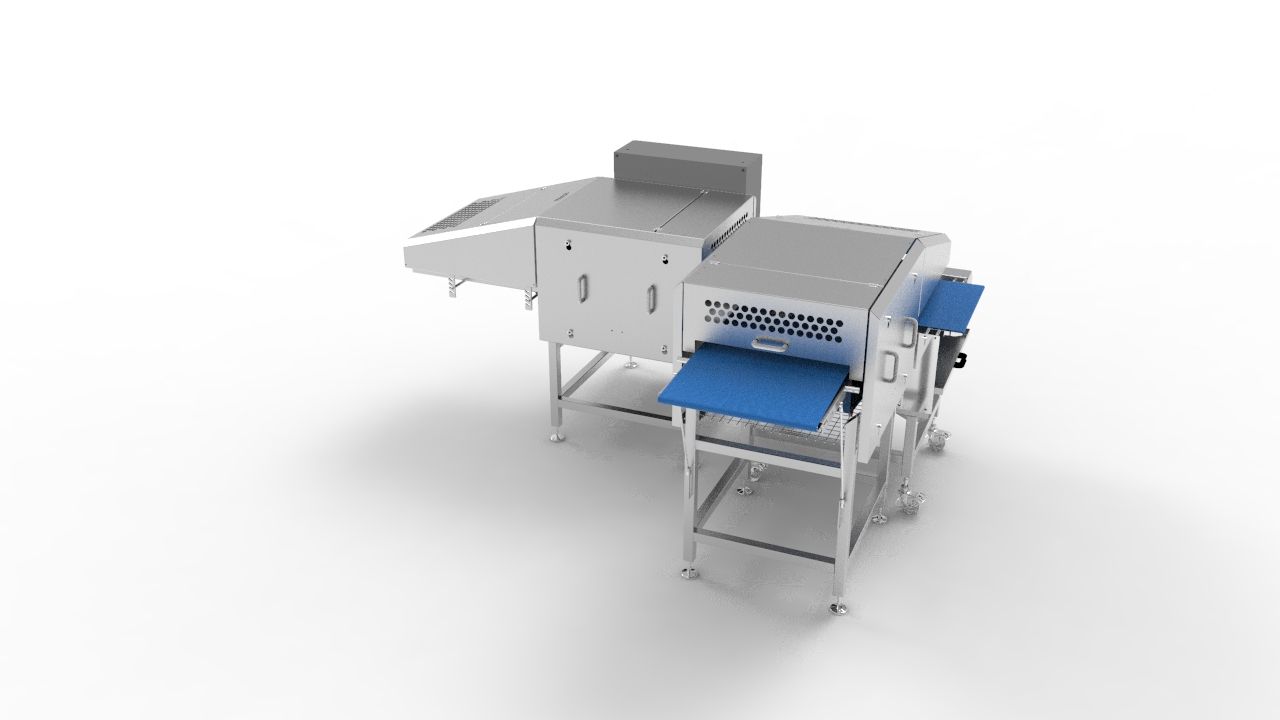

(Control unit without touch control in the photo.)



The length of the equipment depends on the height difference between the feeding unit and the filling level and the inclination angle of the belt.
