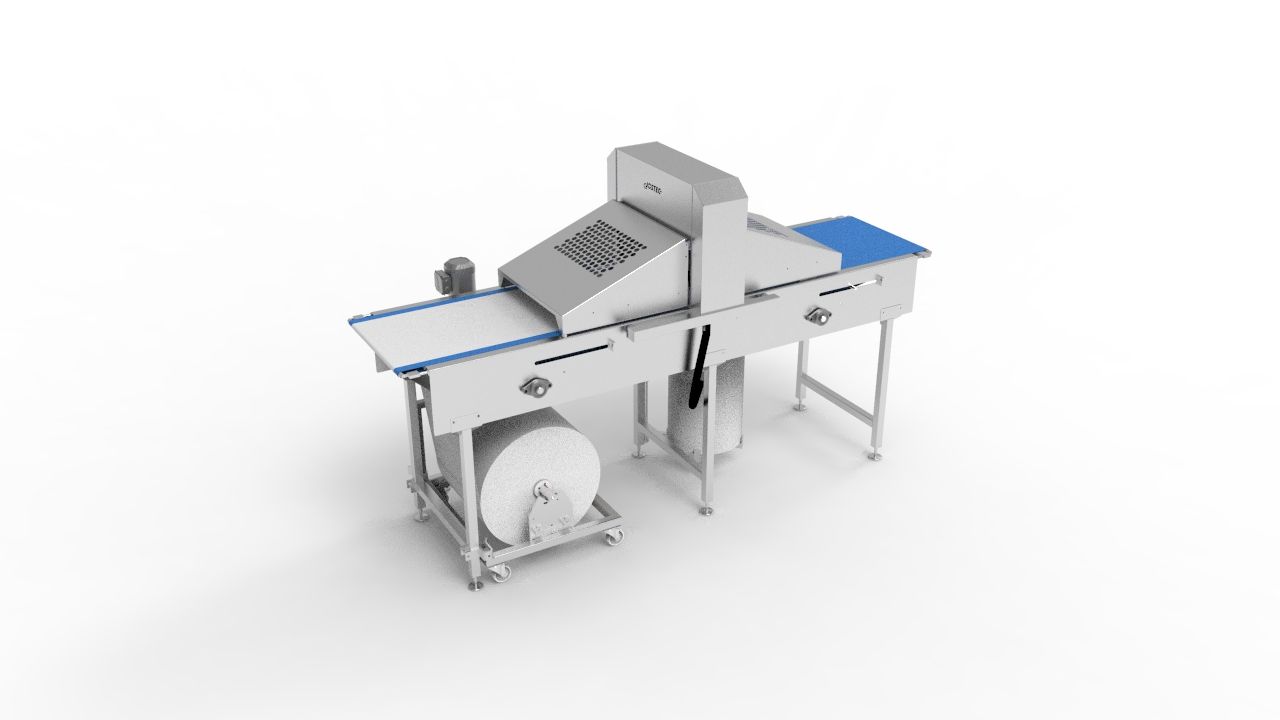

Paper feeding unit for the production line

A paper feeding unit to be placed after the production line.
Operational principle:
- The raw dough pieces coming from the production line are addressed to the conveyor of the paper feeder.
- The paper is released from the roll (1) as a continuous band.
- The paper is cut by a guillotine (2) to a defined length between the product rows.
- The paper is held towards the belt by vacuum (3).
- The products will be transported on the cut paper to the next belt for further treatment.

The width of the paper roll is 300 – 800 mm. The maximal standard diameter of the roll is around 700 mm.
The minimum height of the line is determined by the paper roll placed under the conveyor
