Pulling tray filling unit

A filling unit for industrial production, aimed for transport of the products to the prover or directly to the oven.
Optional standard belt widths (B) 400 and 650 mm. Wider belts on request. Maximal width 1,5 metres.
Pulling distances (A) from 1 metre up to 4 metres.
Fills the boards of the prover or the tunnel prover or directly to the oven on the grate conveyor as in the picture. The filling method can be chosen according to the product row, the product group or the total width.
Photo cell control.
Filling levels (H1) and spaces (H2) and orientation of the line are selectable.
The filling unit includes a rising filling tip and automatic control of the belt.

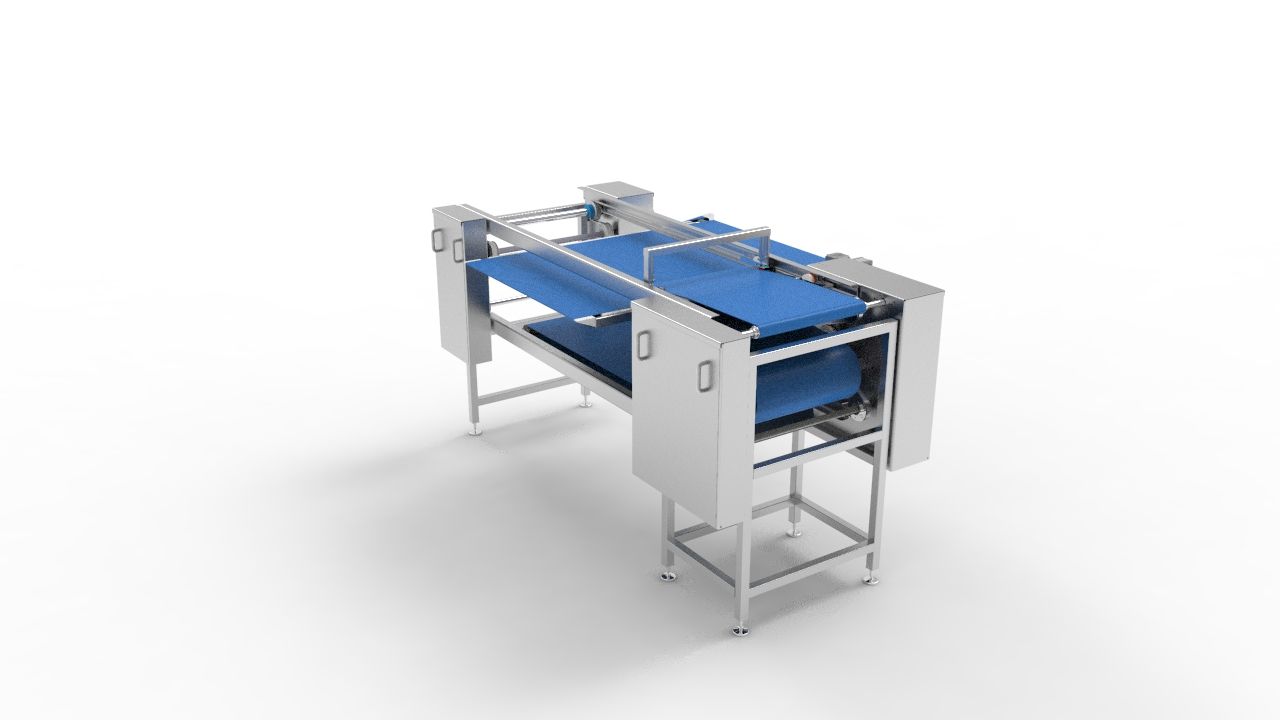

(The control unit is missing from the photo.)
